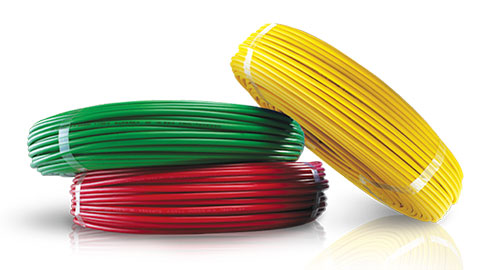

House wires are preferred for areas that require superior safety such as hotels, theatres, hospitals, railway stations, high rise buildings and chemical industries. F M Exim Private Limited offers wide range of House Wires such as Single Core Cables, Multi Core Cables and 3 Core Flat Cables. Each of these products have a superior quality and durability.
PVC insulated Single core cables have a wide range of application in machine tools, appliances, control panel, machinery & industries of various nature. The conductors are drawn from bright electrolytic grade copper and are annealed & bunched together which are then insulated with specially formulated, in-house developed PVC compound with high insulation resistance value. The insulation process is carried out on modern, high speed extrusion lines with accuracy, ensuring consistency in performance.
Below are some of the commonly used industry sizes; however, we can also customize them according to client specifications.
Single Core Cables with Flexible Strands of Annealed Copper Conductor |
Single Core Cables with A Single Strand of Solid Annealed Copper Conductor | |
|---|---|---|
PVC Insulation
|
Yes
|
Yes
|
Roll Packing
|
Yes
|
Yes
|
1.0 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
No
|
1.5 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
Yes
|
2.5 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
Yes
|
4.0 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
Yes
|
6.0 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
Yes
|
PVC insulated Single core cables have a wide range of application in machine tools, appliances, control panel, machinery & industries of various nature. The conductors are drawn from bright electrolytic grade copper and are annealed & bunched together which are then insulated with specially formulated, in-house developed PVC compound with high insulation resistance value. The insulation process is carried out on modern, high speed extrusion lines with accuracy, ensuring consistency in performance.
Multi Core Cables with Flexible Strands of Annealed Copper Conductor |
Multi Core Cables with A Single Strand of Solid Annealed Copper Conductor | |
|---|---|---|
PVC Insulation
|
Yes
|
Yes
|
Roll Packing
|
Yes
|
Yes
|
2C x 1.5 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
Yes
|
3C x 1.5 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
Yes
|
2C x 2.5 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
Yes
|
3C x 2.5 Sq mm - 50 mts/ 100 mts / As per Requirement
|
Yes
|
Yes
|
Conductors:
The conductors are drawn from bright, electrolyte-grade copper, annealed, and then bunched together to ensure superior conductivity and flexibility.
Insulation:
The bunched conductors are insulated with a specially formulated, in-house developed PVC compound that provides high insulation resistance. Insulation is applied using modern high-speed extrusion lines with precise accuracy, ensuring consistent performance.
Sheath:
The insulated cores are laid up to form a compact core assembly. The outer sheath of the 3-core cable is made from a special abrasion-resistant PVC compound that is impervious to water, grease, and oil. This sheathing not only facilitates easy stripping but also ensures durability against mechanical abrasion during use.
