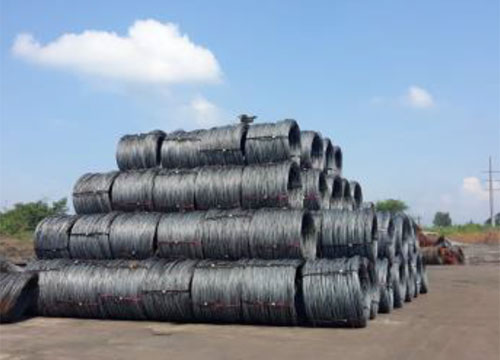

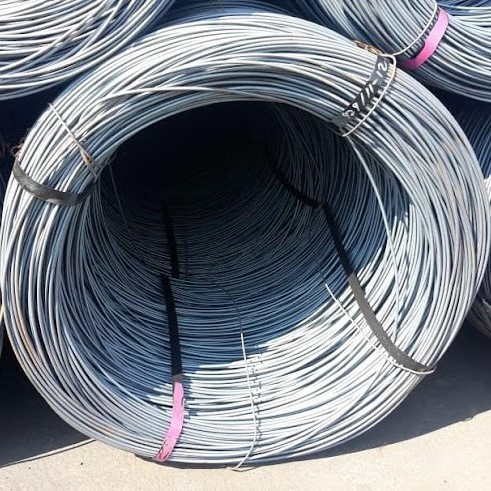

Wire rod is a long steel semi-finished product manufactured by hot rolling billets on continuous rolling mills. It has a round cross-section and is wound up in coils.
Wire rod sizes (in MM) |
Length (in MM) |
Coil Weight (MT) |
|---|---|---|
5.5
|
1000 to 1120
|
1
|
6
|
1000 to 1120
|
1
|
Coil ID: 800 mm | Coil OD: 1100 mm
We offer full container load (approx 22 MT). Tolerance of +/- 5% in weight.
Particulars |
Wire Rod SAE 1006 Eqivalent |
Wire Rod SAE 1008 Eqivalent |
Wire Rod SAE 1012 Eqivalent | |
|---|---|---|---|---|
Chemistry
|
%C
|
0.08 MAX
| ||
% min
|
0.55 MAX
|
0.55 MAX
|
0.60 MAX
| |
% S
|
0.045 MAX
|
0.055 MAX
|
0.040 MAX
| |
% P
|
0.05 MAX
|
0.055 MAX
|
0.040 MAX
| |
% Si
|
0.25 MAX
|
0.25 MAX
|
0.25 MAX
| |
De-Oxidation
|
Si-killed
|
Si-killed
|
Si-killed
| |
Mechanical Properties
|
UTS (N/mm2)
|
440 MAX
|
460 MAX
|
480 MAX
|
% EL
|
28 min
|
28 min
|
28 min
| |
We offer full container load (approx 22 MT). Tolerance of +/- 5% in weight.
